FactionFab F-Spec Coilovers

2013-2022 Scion FR-S / Subaru BRZ / Toyota GR86

Ships for free in the 48 states

SKU: 1.10186.1We price match!

In Stock

Ships within 24 hours

Introducing the FactionFab F-Spec Coilovers for the 2013+ FR-S / BRZ / 86. Note: These have been tested to fit the new 2022 Subaru BRZ and Toyota GR86
You will earn Reward Points with this Purchase.

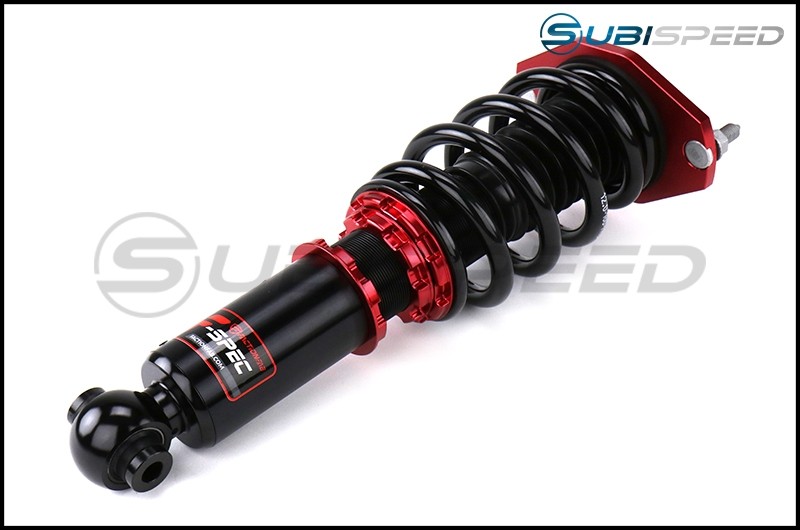

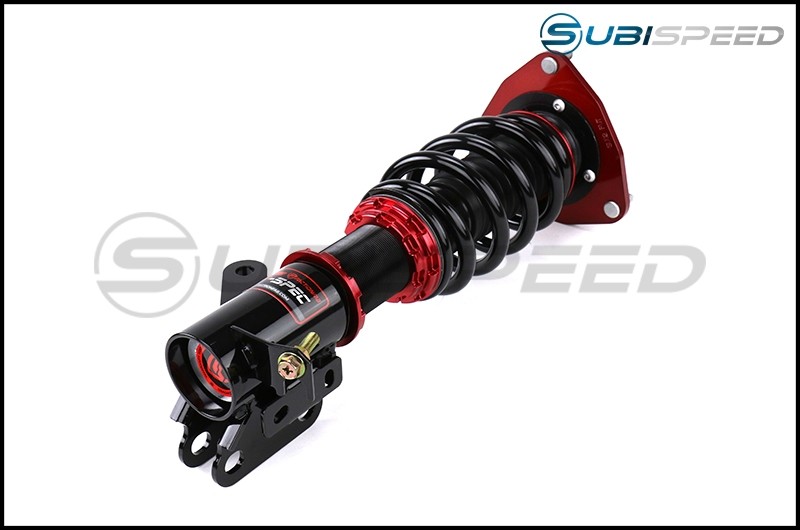

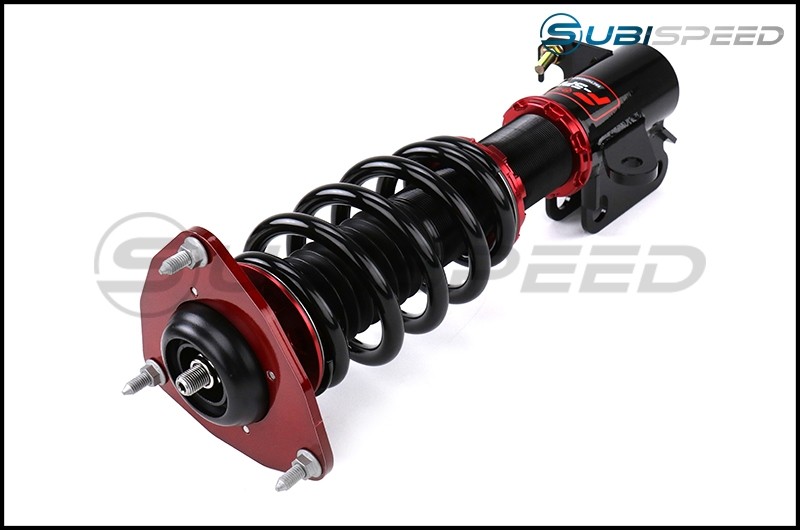

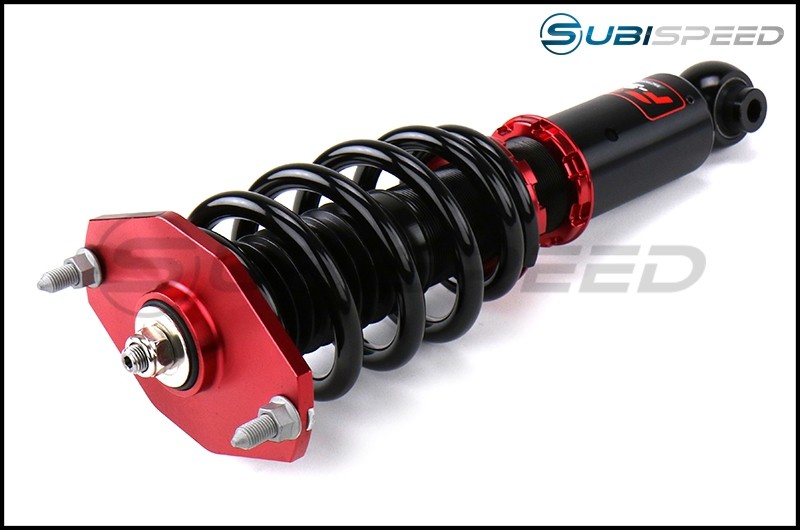

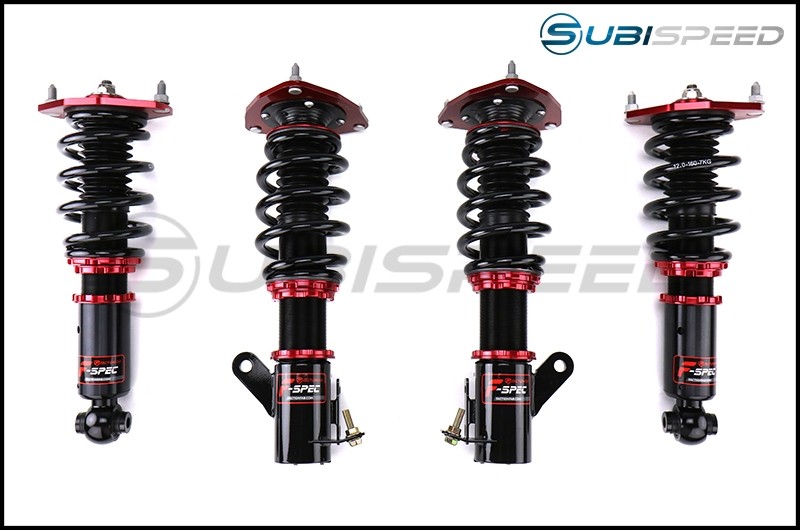

FactionFab F-Spec Coilovers

These are ideal for those of you looking to achieve that aggressive lowered look while improving the handling and steering response of your vehicle. These have been engineered using the right spring rates so that you can have an efficient suspension package without compromising the overall ride quality.


  • Increased spring rates and shock valving over stock suspension with emphasis on street performance while not jeopardizing ride quality and comfort
  • 32-way adjustable monotube shocks allow for stock-like ride quality on the soft setting while providing enough adjustment to stiffen up the ride for the weekend track days or canyon drives
  • The adjustment allows customers to fine-tune ride quality from soft to stiff in order to meet their road surface and driving environmental needs
  • Rubber isolated top-hats feature a high durometer rubber mount to reduce deflection while isolating unwanted minor vibrations and road imperfections

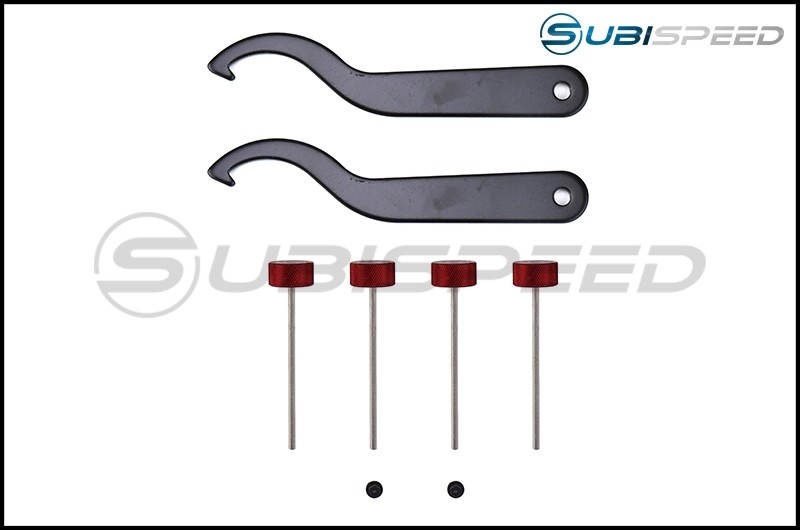

  • Includes height adjustment tools
  • Includes damping adjustment tools


  • Japanese steel tube construction using SAE1010 STKM13c
  • Monotube shock design with high-performance mono-tube shock construction allowing for better rider control, fluid life, and thermal fluid stability
  • Synthetic high-performance oil
  • Independent ride-height adjustability separate from spring pre-load allowing the customer to set the ride height without having to worry about shock travel
  • Top hats included allowing this suspension system to be a direct replacement for your factory suspension setup
  • Forged 6061 anodized adjustable collars and spring seats for easy adjustment and prolonged cycle life
  • Robotic welded and electroplated lower shock mounts for consistent fit and finish
  • Dust boots and bump stops for shock protection and longevity
  • Individually sold components allowing for replacement or upgrade of components as desired or needed
  • Plastic lower spring seat isolator to aid ride height adjustment and reduce unwanted audible noise


  • Brand: FactionFab
  • Adjustable: Yes
  • Camber Adjustable: No
  • Caster Adjustable: No
  • Dampening Adjust Type: 32 Way
  • Damper Type: Monotube
  • Drop Height Front: 0.1-2.4in
  • Drop Height Front Metric: 2-62mm
  • Drop Height Rear: 0.1-1.9in
  • Drop Height Rear Metric: 3-48mm
  • Height Adjustable: Yes
  • Independent Height Adjustable: Yes
  • Spring Rate Front: 392lbs/in
  • Spring Rate Front Metric: 7Kg/mm
  • Spring Rate Rear: 392lbs/in
  • Spring Rate Rear Metric: 7Kg/mm
  • Top Hats Included: Yes
  • Mfgr. Warranty: 1 Year
  • Condition: New Product

3 customer reviews

Average rating
(based on 3 reviews)
Ease of Installation
Fit / Quality
Overall Satisfaction
  1. Awesome setup that won't break the bank.

    By Tim February 22, 2023

    Awesome quality coilovers, completely changed the ride quality! Super easy to install, downloading the pdf instructions from the website helped fill in some blanks. Also came with an awesome plate frame and sticker!!

  2. Entry level suspension

    By Timothy August 24, 2020

    This set of suspension is great for street use. It allows to control the stiffness and give you a good amount of low to fill that wheel gap and still be functional. It is a set of coilovers so be ready for a long day if you're alone. I say this a good entry level set because of the cheap price and nice quality without overloading them with spring rates you dont need for street use. Though if you do have a larger budget I do recommend going for the FR-spec for the camber adjustable top-hat or stay cheap and get these with a set of camber bolts.

  3. Great entry-level coilovers

    By Timothy August 22, 2020

    This was my first big modification to my car and while it does take some time to install them these coilovers are a good value for someone new to modifying cars or just casually drives their car. But if youre more serious id recommend stepping up to the FR spec for the camber plate and higher spring rate if you track your car. I will be installing camber bolts with this.
