DeatschWerks DW440 440lph Brushless Fuel Pump with Single Speed Controller

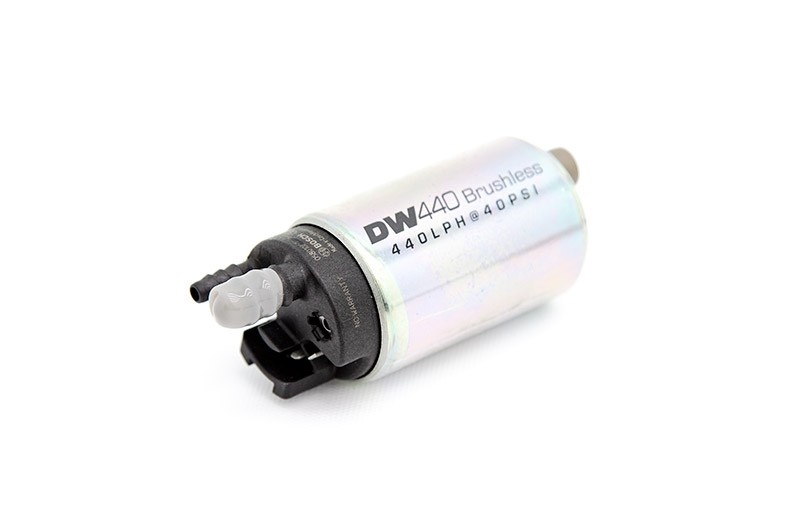

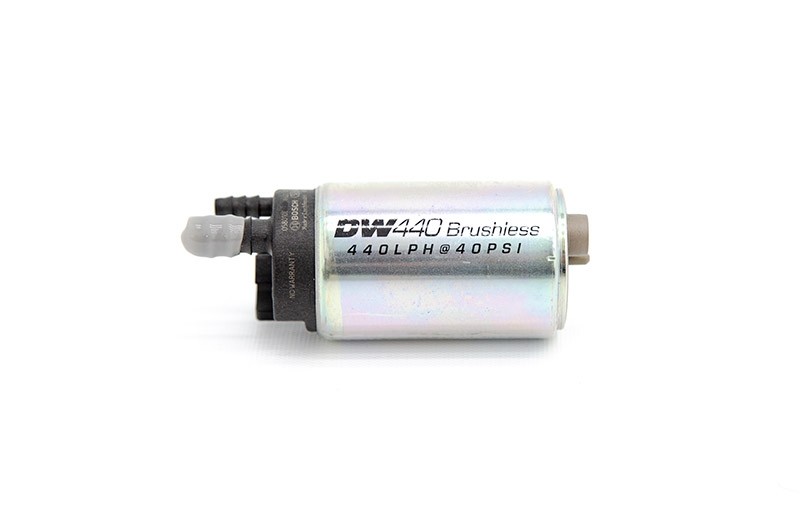

DeatschWerks DW440 440lph Brushless Fuel Pump
The DW440 delivers brushless pump technology in a design that is optimized for use in OE pump modules.
Compared to traditional brushed DC motor fuel pumps, brushless (BLDC) fuel pumps offer increased efficiency/flow, higher durability, and expanded fuel compatibility. Delivering these brushless advantages in a package optimized for in-tank use is a significant challenge. Up until now, the brushless pumps available in the high-performance aftermarket have been limited to either in-line pumps or submersible pumps too large for fitment into most OE modules. The new DW440 is the first turbine-impeller brushless pump system designed for fitment into OE pump modules. The DW440 brings brushless pump technology into the tank by providing several unique features…
Compact Size – Modern fuel pump modules have a lot going on in a small amount of space. Fitting a big aftermarket pump into these modules is not an option. The DW440 measures 4-inches from inlet to outlet. This is 2” shorter than the competition, opening up lots of fitment options that did not previously exist for customers wanting to integrate brushless pumps into their fuel system.

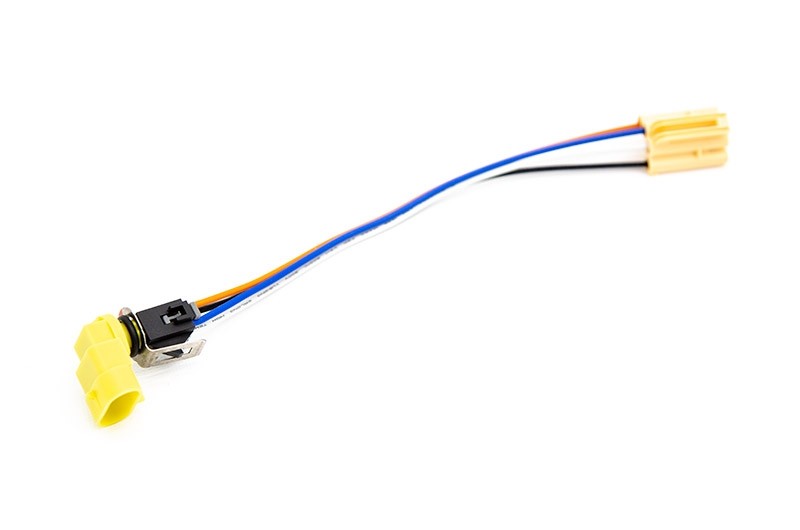

Bulkhead Wiring – Brushless pumps require a 4-wire connector for digital control. The DW440 pump kits include a bulkhead harness that allows pass-thru of the 4-wire system via a small 10mm hole which is easily added to an OE module top-hat.
Venturi Outlet – Most modern pump modules utilize a “venturi jet” system to prevent fuel starvation at low tank levels and high G cornering/acceleration. The DW440 has an integrated 6mm outlet to drive these systems.
The brushless DW440 delivers a lot of flow in a small package. With standard 13.8v battery voltage, the pump flows 440LPH at 40 PSI to support 1000hp on gas and 750hp on e85. If even more flow is needed, the 40amp controller and brushless design make this pump an ideal candidate for use at voltages beyond typical 13.8 battery voltage. The pump and controller have been endurance tested at voltages up to 24v. At a recommended max intermittent voltage of 20v, the DW440 flows 620LPH at 40psi.

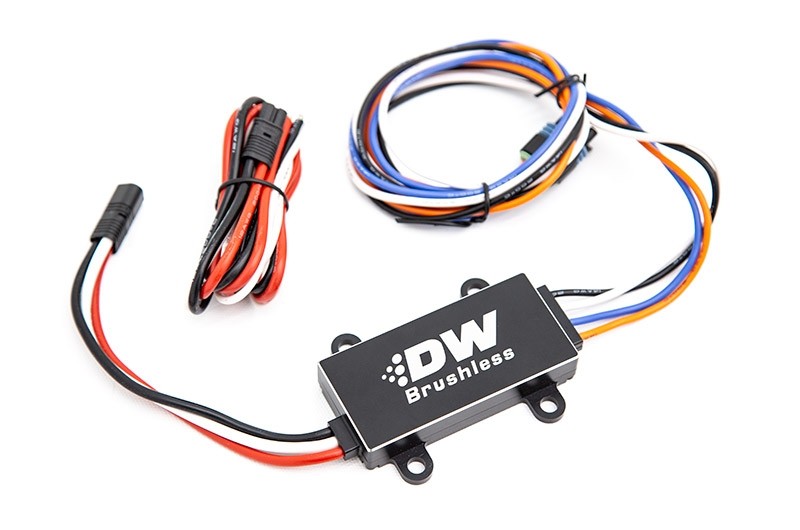

All brushless pumps require digital controllers to drive the brushless armature. The controller included with the DW440 pump kits were designed exclusively for DW and includes features and options to maximize ease of integration into your fuel system. The DW brushless C1 pump controller is rated at 40amps and includes variable timing advance, digital thermal protection, and high capacity integrated heat sinks. The controller is housed in a compact 2.5x3.5 inch billet aluminum case making it easy to tuck away out of sight near the pump module. 3 different controller options are available to maximize compatibility with your fuel system… single speed, dual speed, or PWM compatible.
C101 is a single speed controller which allows you to operate your DW440 in a simple 100% duty cycle “constant on” just as you would a standard brushed pump.
- Capable of flowing 440 LPH at 40 psi
- Single-speed controller option which allows you to run the pump at 100% duty cycle constantly
- Capable of supporting 1000HP on gasoline and 750 HP on E85
- Brushless design

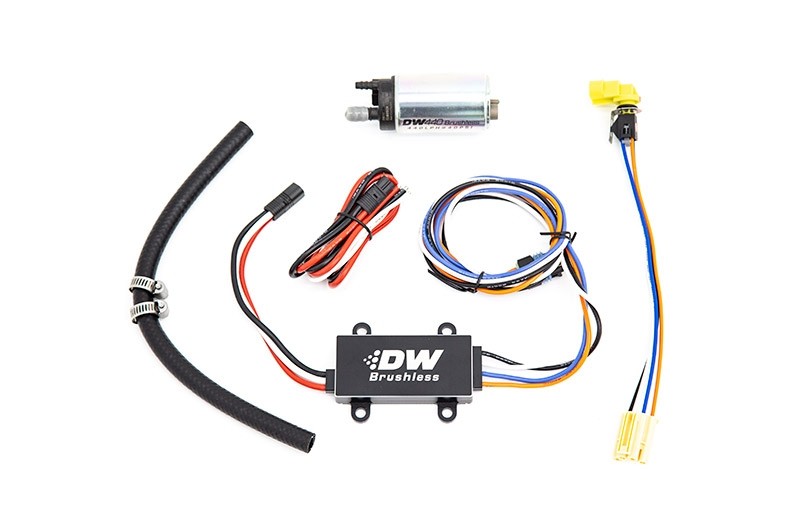

- Includes controller harness with leads
- Includes hose and hose clamps
- Includes fuel filter sock
- Includes fuel pump to bulkhead harness
- Includes 4-wire bulkhead with O-ring and retainer clip
- Universal kit
Featured In Subispeed's New Products February
|Additional Warranty Information||None|
