OLM Fog Light Al Series (Lumileds CSP)

2015-2020 Subaru WRX & STI / 2014-2018 Forester / 2013-2017 Crosstrek / 2013-2016 Scion FR-S


SKU: AL-FOG-PARENTWe price match!


OLM's Al series utilizes efficient LEDs to maximize light output while keeping the overall bulb affordable. Here's a great plug and play solution for owners with standard halogen bulbs in their fog lights.

NOTE: Crosstrek models with SRF (Steering Responsive Fog Lights) only. Does not fit 2018+ WRX with LED headlamps. UPDATE: Does not require additional harness seen in some pictures.

Reset Configuration
You will earn Reward Points with this Purchase.


The first commercial halogen lamp was developed around 1959. In most applications they're easy to recognize due to the high heat and orange light output. They also have a lower life span with lower light output per watt. This new Al series bulb utilizes the latest technology to maximize light output while maintaining an affordable price.

Through experience from previous bulb design, OLM has continued to push its larger heatsinks vs fans. By keeping them out of the design, there are less components at risk of failing.


  • Input Power: L/25W, H/25W
  • Operating Voltage:DC9-32V
  • Luminous Flux:L/4000LM, H/4000LM
  • Light Source Model:CSP Chip
  • Color Temperature:6000K
  • Heat Dissipation Theory:Aviation Aluminum 6063
  • Operating Life:>30000hrs
  • Operating Temperature:-40°C ~ +80°C
  • Warranty: 1 year
  • IP rating: IP65
  • Minimum Light Output: 3400 lumens per pair
  • Maximum Light Output: 3800 lumens per pair
  • Approximate Wattage: 18 watts each


As the trend towards smaller, lighter and thinner luminaires continues to gain momentum, LED manufacturers—including Lumileds—have responded by shrinking the size of their LED packaging. One result of this trend is the growing popularity of Chip Scale Package (CSP) technology. CSP technology eliminates the traditional submount to directly attach the LED die to the PCB, allowing for overall system cost reductions. As fully functional LED packages that are equal to or slightly larger than the size of a die, CSPs are increasingly being implemented in lighting designs.

Plug and Play Installation

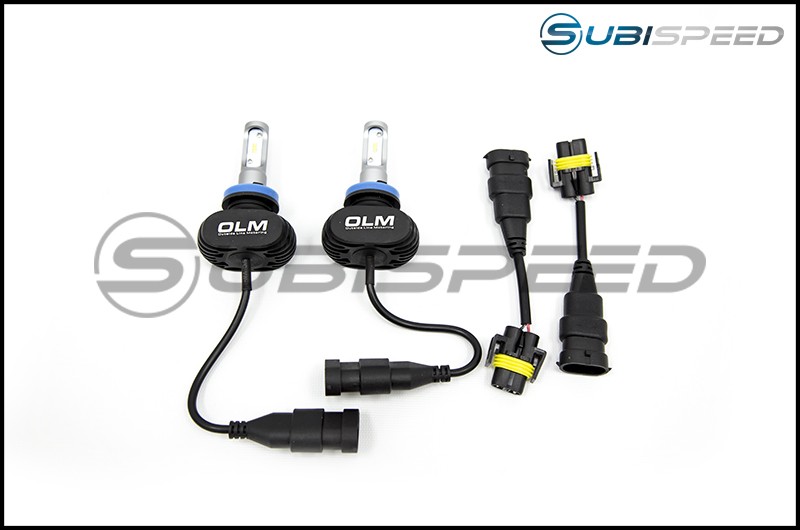

Installation of the H11/H16 OLM Al series is extremely simple. If the socket fits, that's where it goes! The LED driver to bulb connections come with rubber seals to make sure the connection remains watertight.


With OLM products, for a period of 1 year after the purchase, just e-mail us here and let us know about your issue.

Our trained staff will troubleshoot the product with you if required. They usually ask for a photo or two. If the issue still exists, we send you out a new item free of charge! You will not have to pay shipping to return your item or receive another.

SubiSpeed only offers HID relays when they are possibly required. We have tested the current draw of this kit and found that it does not exceed the factory wiring.

4 customer reviews

Average rating
(based on 4 reviews)
Ease of Installation
Fit / Quality
Overall Satisfaction
  1. My Fog Lights Exist

    By Justin November 15, 2021

    I purchased these to replace my factory halogen bulbs on my 2015 WRX. It was an easy install and the results are fantastic. I removed the front two push pins for each side underneath the bumper. After pulling back the liner, there was more than enough room to reach. These match my factory LED headlights perfectly. Previously I couldn't tell if the fog lights were off or on. These made a big difference.

  2. A definite must have

    By Edrick March 24, 2018

    Took me about 5 minutes to do. Simply pop 1 plastic pop rivet on each side and pull the corner piece down to gain access. The color is a perfect match for the stock Led headlights and the light output is perfect. Wish I would have done this sooner.

  3. Nice product and even easier install

    By Zac June 15, 2017

    Fit and finish is great. Less then 10 minute install and it really sharpened the look. Much brighter then stock. Overall very happy. Get the LED turn signals to complete the look.

  4. Great Upgrade

    By Marco February 4, 2017

    I originally purchased due to a burned out stock fog bulb at > 40K miles. I installed these according to the video on this page but my wrists were pinched in between the bumper cover and fender liner. I imagine complete removal would've been easier. Nevertheless, it worked. The 1st side took me about an hour due to fear of breaking something. 2nd side took 5 minutes due to my understanding the limits of the bumper cover and fender liner. Literally a night and day difference with the lighting put out.
