Nameless Cam Plate

The FA-20 engine has provisions on the passenger cam box that can be used for a turbo oil pump location or a vacuum source. This feature that is unused in the manual transmission vehicles is covered by a stamped steel plate which seals the oil surface with a flat surface and a stripe of RTV. This panel and its potential oil leaks onto the exhaust are a common warranty item with the BRZ, FR-S and GT-86.

The Solution

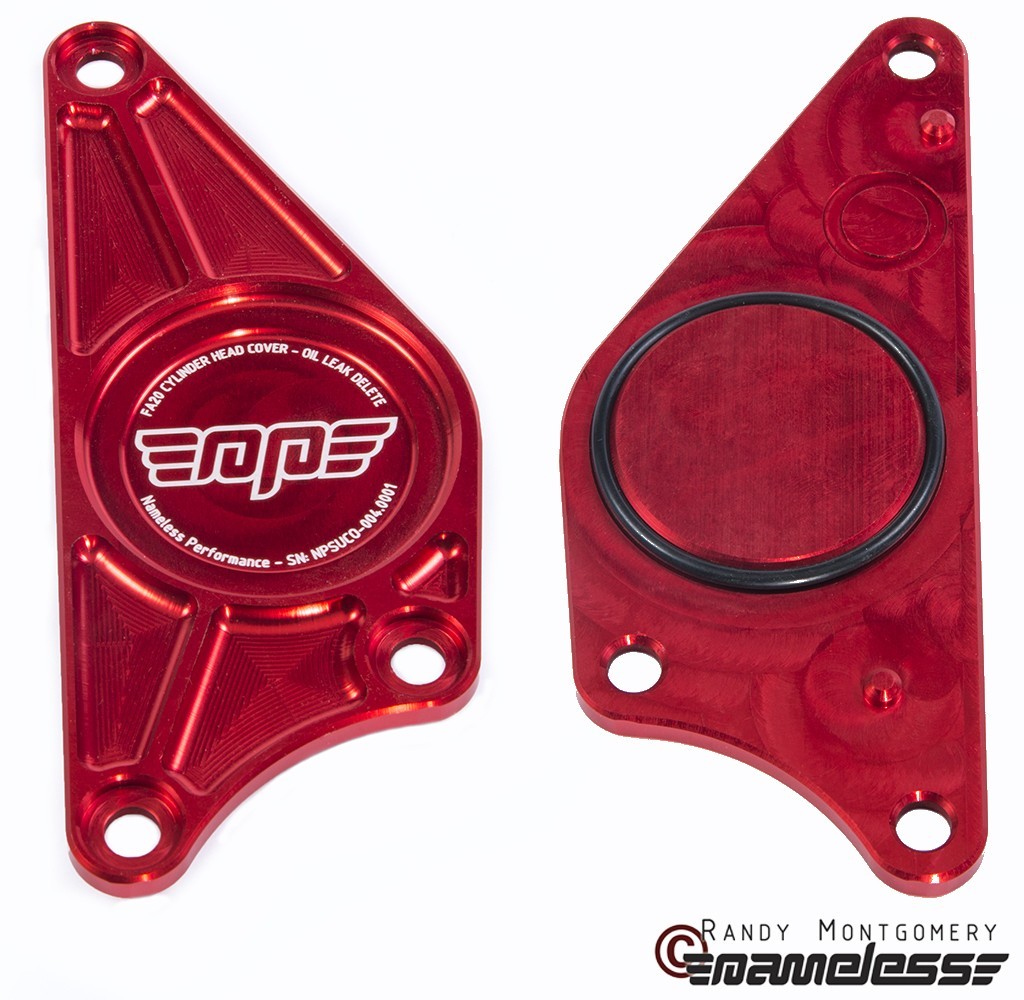

Nameless Performance offers a CNC machined billet aluminum replacement for the factory stamped steel part. Utilizing all of the features in the cylinder head to properly align the assembly to the cylinder head using factory dowel holes, as well as an o-ring and plug on the back side of the plate, this system is guaranteed to seal the oil passage in the back of the cylinder head, eliminating the risk of leaks, and eliminating the use of RTV in this area of the oiling system on the vehicle. Excess material has been removed from the panel for an attractive, lightweight solution that does not impact the structural integrity of the part. The surface is anodized in your choice of color and laser engraved and serialized with the Nameless Performance Logo.

Specifications

• Weight: Stock Weight .5 lbs ; Upgraded Weight .15 lbs
• O-Ring Material: DuPontâ„¢ Viton® Fluoroelastomer

DuPont™ Viton® is the fluoroelastomer of choice for high performance that can minimize downtime and seal failure, providing proven resistance to chemicals and extreme temperatures. It’s the most specified fluoroelastomer for fuel system seals and hoses, O-rings and gaskets.

In the automotive field, the latest generation of Viton® has established a new performance standard for today’s advanced fuel and engine systems. Viton® provides improved system durability in extreme temperatures for fuels, oils, transmission fluids and acid condensates. In tough oil and gas down-hole applications, Viton® can help extend maintenance intervals and help protect against seal failure.

• Plate Material: 6061-T6 Aircraft Grade
• Finish: Anodized per MIL-A-8625

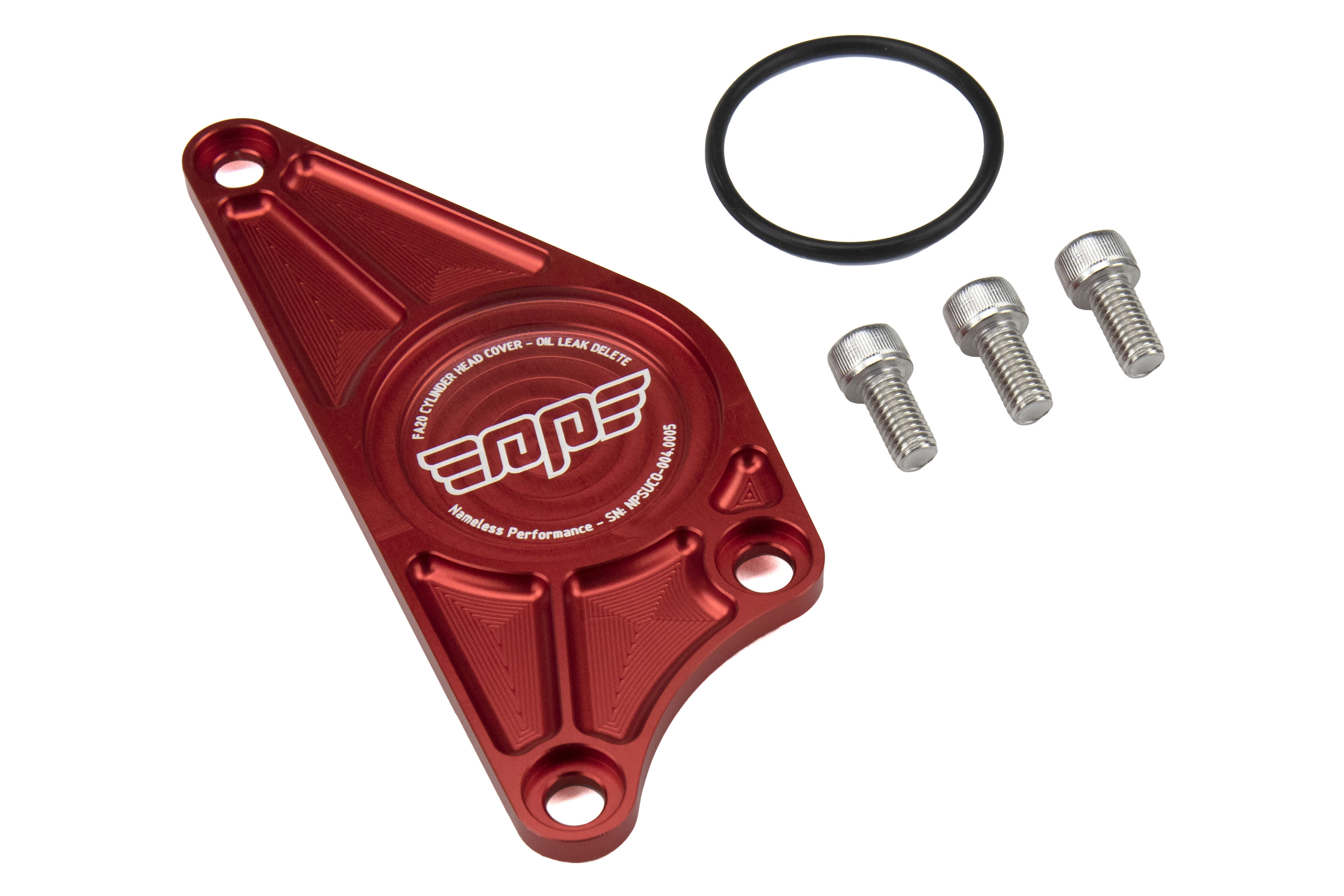

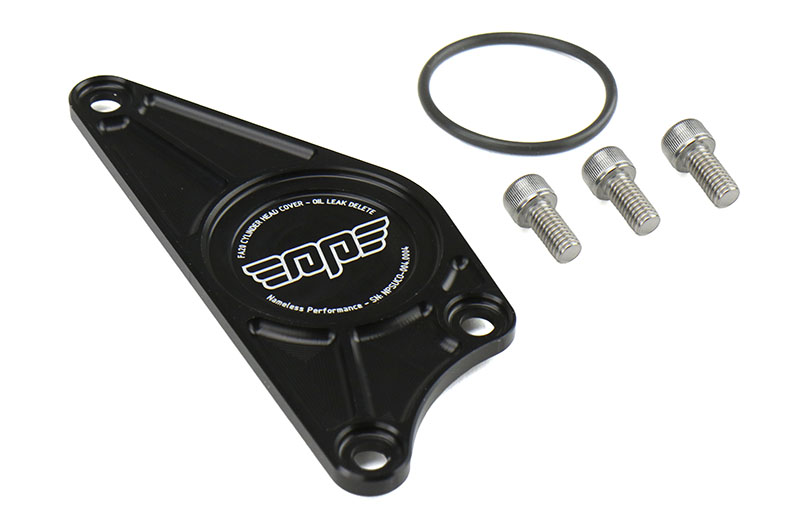

• Hardware: Includes stainless socket head cap screw hardware (not pictured)

Configurable Options

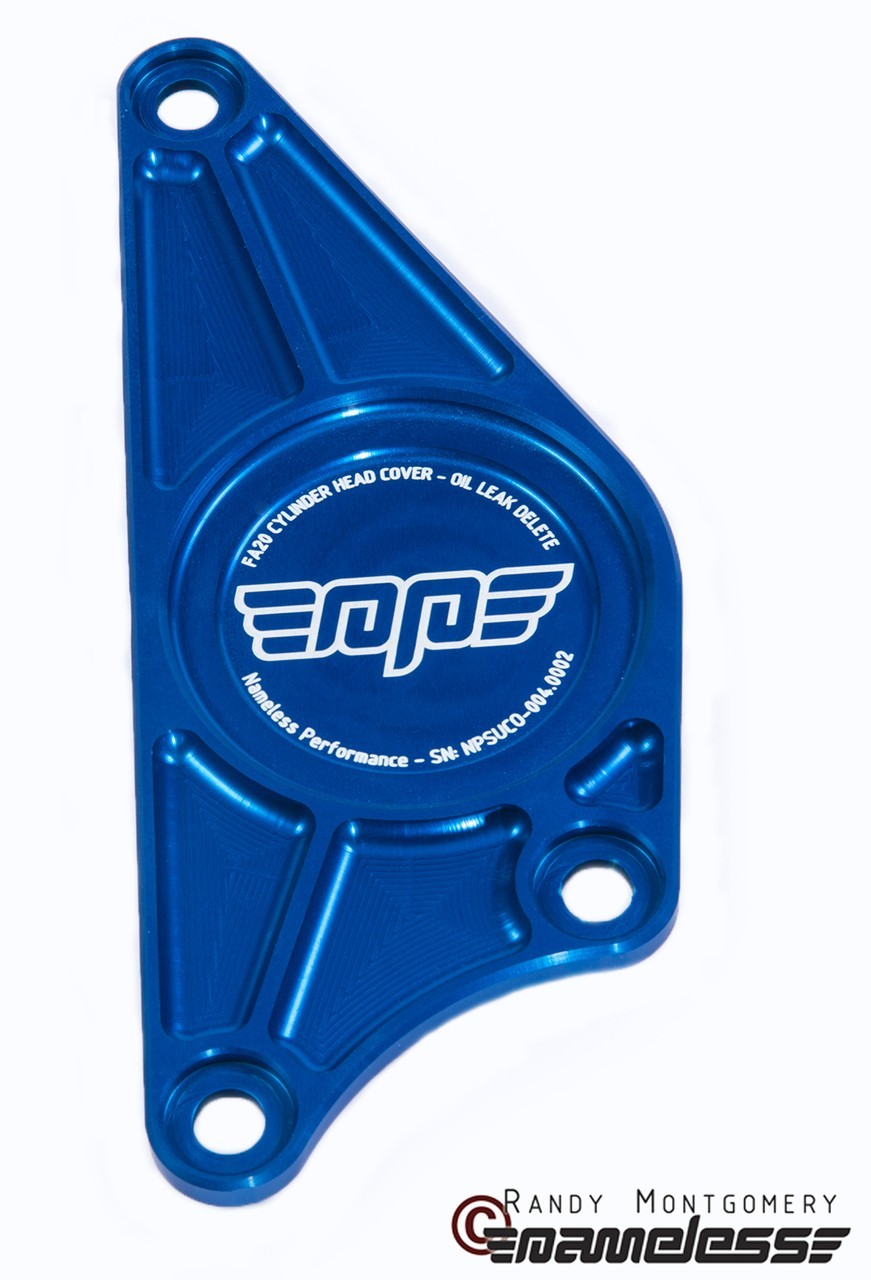

Available in three color options: Red, Black, or Blue
