GCS
GCS RGB Interior Footwell Lighting Kit (Front & Rear W/ Bluetooth)
Universal

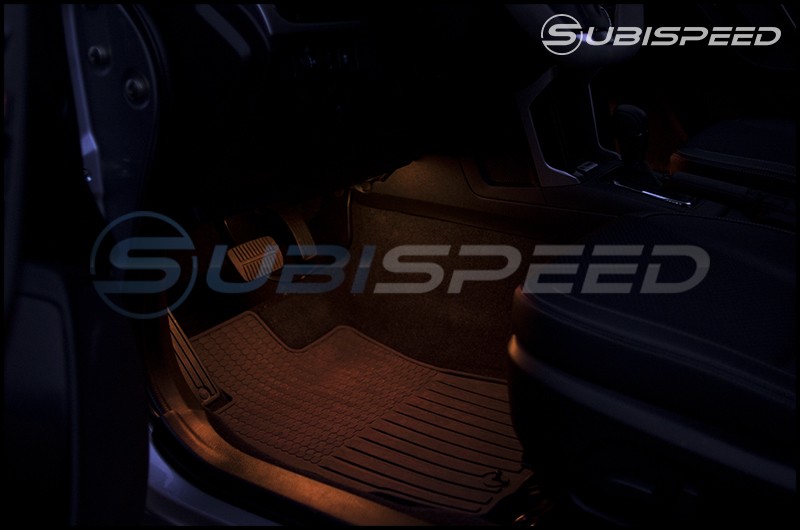

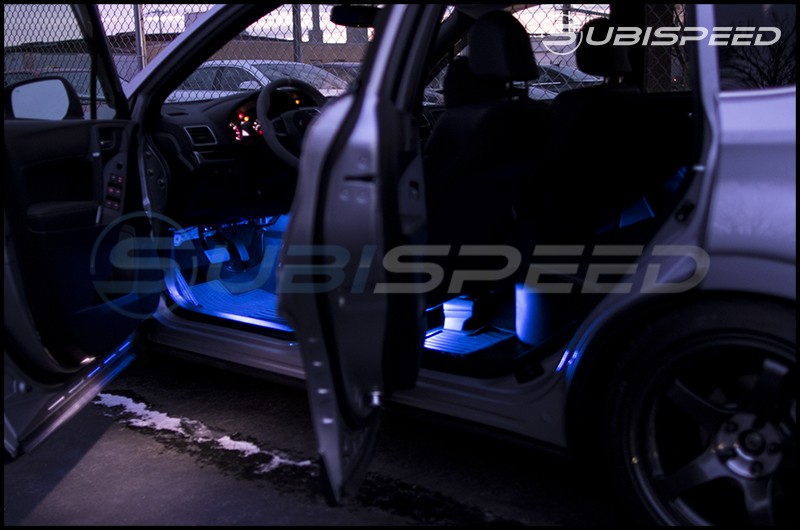

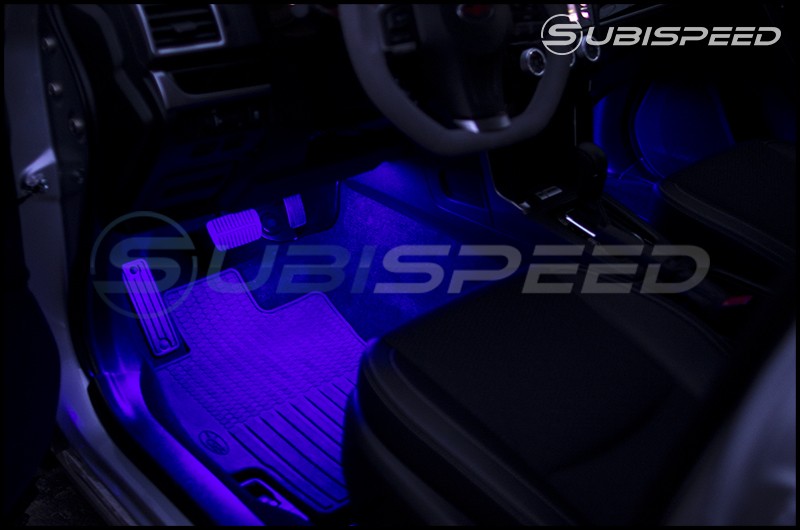

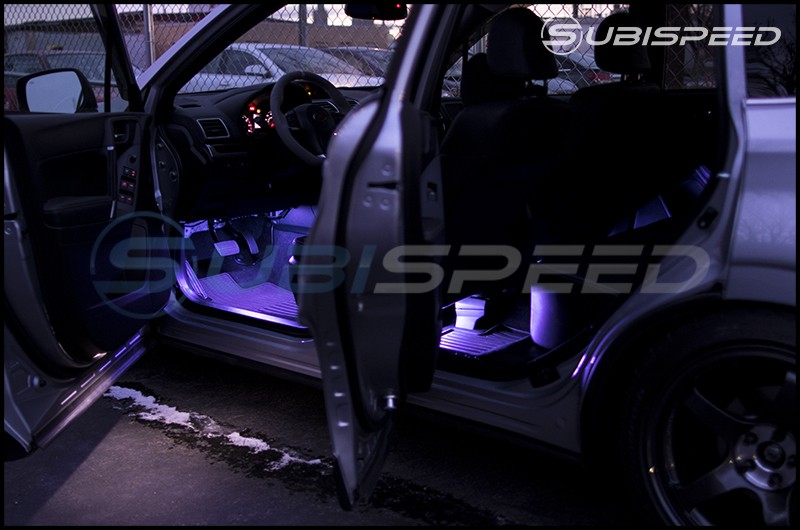

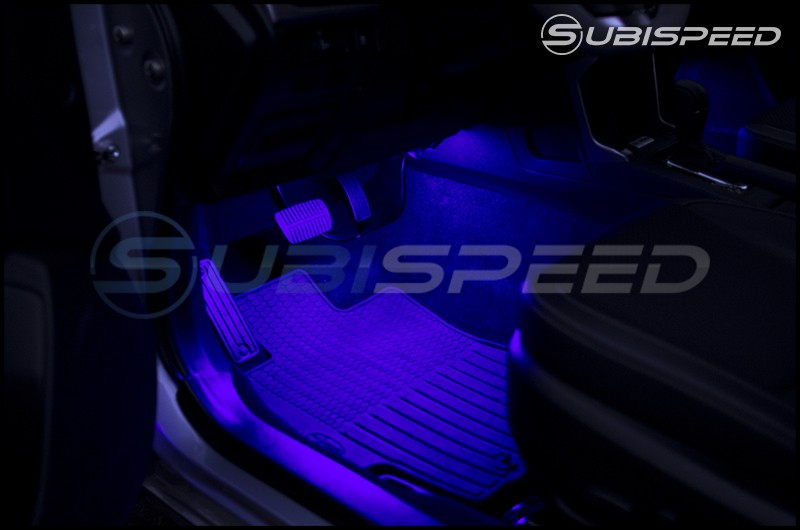

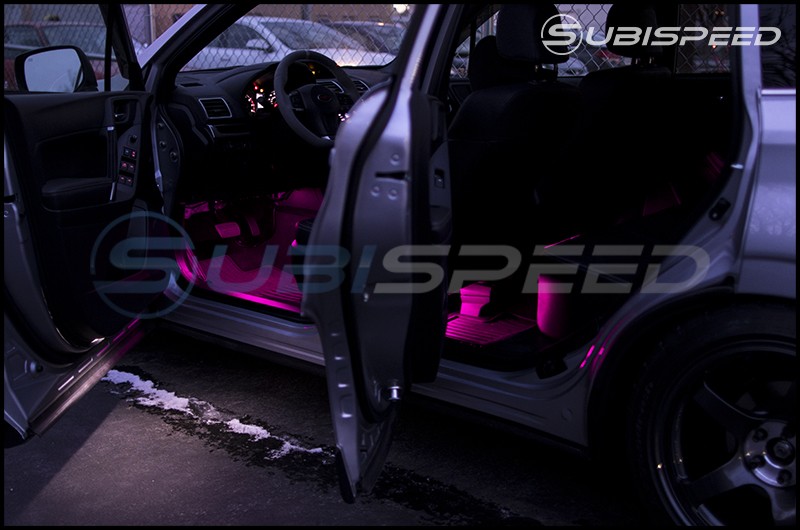

Interior footwell lighting is a great addition to any vehicle. This kit includes 4 separate light strips to illuminate both the 1st and 2nd row of seats.
Note: When installing light strip on the seat rail, double check the clearance when the slider is in the farthest back position, before applying 3M adhesive.
Details
Interior Lighting for the Entire Vehicle
With factory interior lighting kits costing over $100, GCS brings an easy to install kit to the market that will provide light for both 1st and second rows of seats.

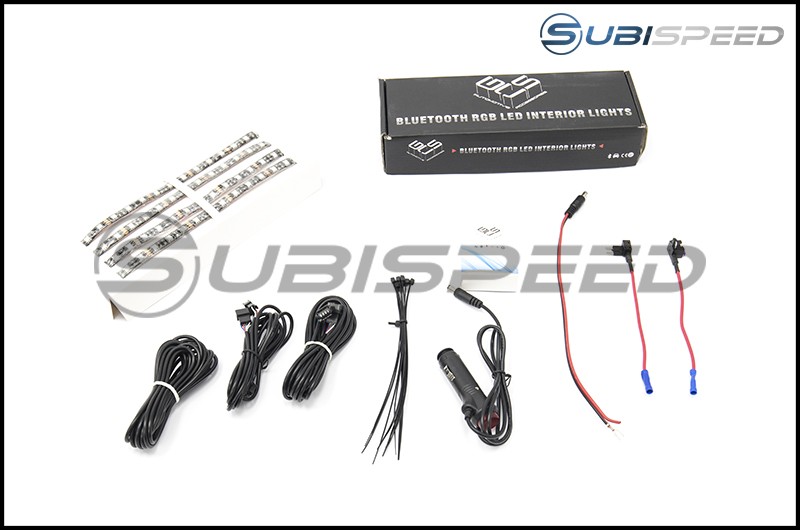

This kit comes with all you need to complete your installation. 4 strips of lighting include 4 runs of wire which you will connect to the controller box. This box connects to your smartphone via an Android or iOS application. You can choose preset colors, choose your own color, or let the lights dance to the beat of the music.
To make the installation even easier, an add a fuse is included so you use the 12v plug fuse inside the cabin to power the kit. In this area there are bolts which mount to the chassis that can provide a ground for the system.
Includes both cigarette lighter and hard wiring connectors (preferred method). Bluetooth connectivity prevents the control device (smartphone) from losing its Internet connection while controlling the RGB lighting system.
Installation
The included add a fuse makes installation a breeze.
- There are two types of add a fuses included. Select the appropriate one for your installation and place the included fuse in the top slot.

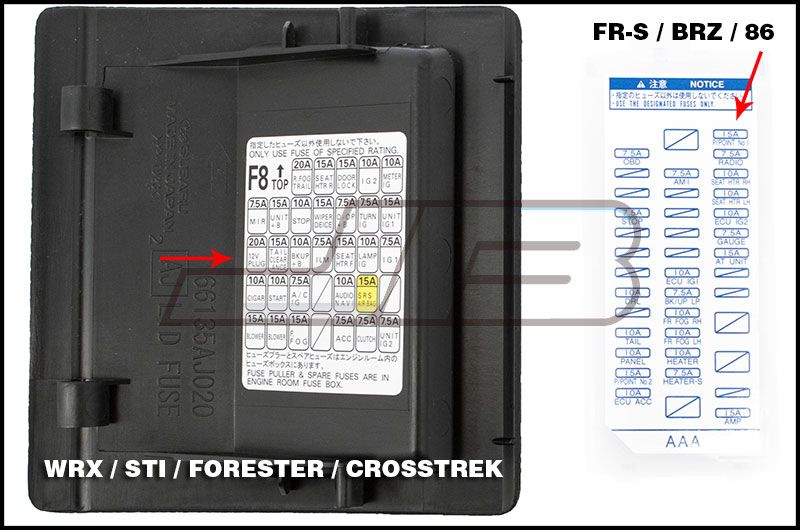

- Note an appropriate fuse by using the diagram we have provided. For these vehicles, the fuse box is located in the driver's side *dash area.
- Pull the fuse out from that location and install it on the bottom slot of the add a fuse.
- Insert the red wire from the RGB LED controller box power wire in the blue portion of the add a fuse and crimp the connection.
- Insert the add a fuse in the slot you removed the fuse from earlier.
- Locate a bolt which can act as a ground post. Use the for the black wire on the RGB LED controller box power wire.
- Insert this power wire in the controller box. Run the rest of the wiring to the mounting locations for the LED strips, mount them, and connect the wires to the RGB controller.
*The WRX / STI / Crosstrek / Forester have a fuse box door that faces the driver. The FR-S / BRZ / 86 have it located under the dash.
Try to avoid turning the vehicle to accessory power before starting. Restarting the RGB controller quickly can result in loss of bluetooth connectivity.
FT86SpeedFactory Install Video - FR-S / BRZ / 86
Subispeed Install Video - 2015+ WRX / STI
Note: When installing light strip on the seat rail, double check the clearance when the slider is in the farthest back position, before applying 3M adhesive.
Downloads
iOS users can find the application in the app store.
Android users, please downloaded the latest file here. You will have to allow installations from unknown locations on your device.
