Megan Racing
Megan Racing Extended Wheel Studs
2015+ WRX / 2015+ STI / 2013+ FR-S / BRZ / 86
Details
Megan Racing extended wheel studs are made with heat treated high strength chromoly steel. Lost of threading on stock studs can be a major safety issue, these extended studs are essential upgrade for added spacers or aftermarket thick-center wheels. These studs are intended to be used with open-ended lug nuts.
Details
- Scion FRS / Subaru BRZ 2013+ / 2015+ WRX / STI
- Package of 20 Extended Wheel Studs
Dimensions
Thread Size: 12mm x 1.25RH
Knurl Size: 14.50mm
Thread Length: 52mm

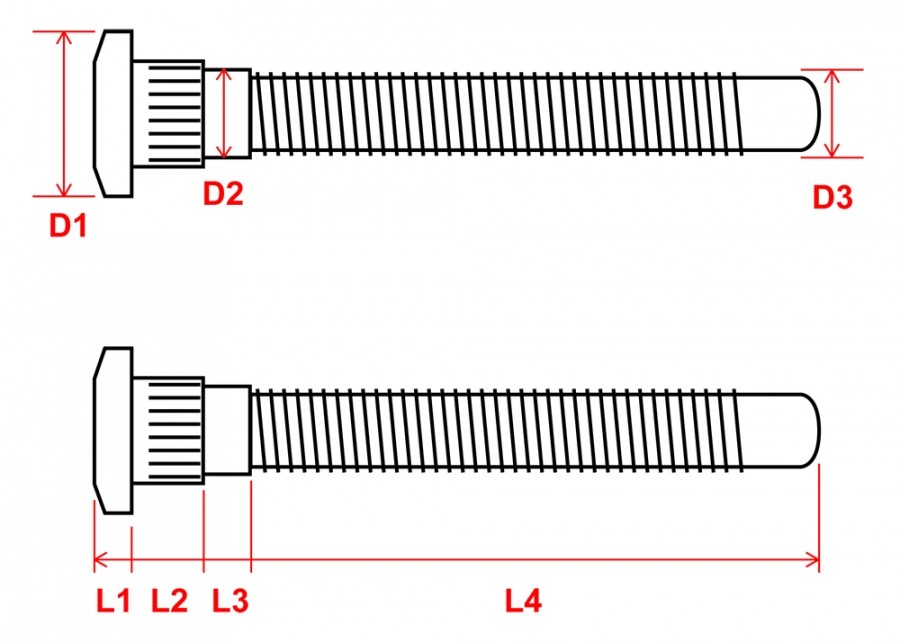

Overall dimension of stud (see diagram)
D1: 18.75mm
D2: 12.10mm
D3: 12mm
L1: 5.50mm
L2: 8.50mm
L3: 5.50mm
L4: 62mm
*Note: Recommended to be used with wheel spacers up to 20mm, 5-6 full turns of lug nut to secure with use of torque wrench.
1 customer review
-
Product is great car was stubborn...
By Dustin May 6, 2019Strong, durable, and slightly difficult to install if your wheel hubs are extremely rusted and will not come off in the the rears I recommend keeping your day free so you can lube up your hub with rust solution. Also I recommend them if your on a budget and don’t need them in a hurry because they are usually on backorder. We put a lot of pressure and force when installing them and they still look brand new so don’t worry that your going to hurt them!! Lastly pair them up with some nice open ended lugs and enjoy the look!
