ACT
ACT HD Street Clutch Kit (Normal FW)
2013+ FR-S / BRZ / 86
Details
This Performance Street Kit features ACT's most popular Heavy Duty Pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stamping to provide rigidity and consistency. ACT?s Performance Street discs are the most popular disc purchased. They feature premium organic materials with higher copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs feature a reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
Feel
A low to moderate pedal feel; smooth engagement with stock to low gear rattle.
Life
Longer clutch life achieved through ACT's exclusive diaphragm design
Quality
Premium organic friction materials for heat tolerance, faster recovery from overheating and prevents warping of mating surfaces
Recommended Use
Recommended for street and race use
ACT Difference

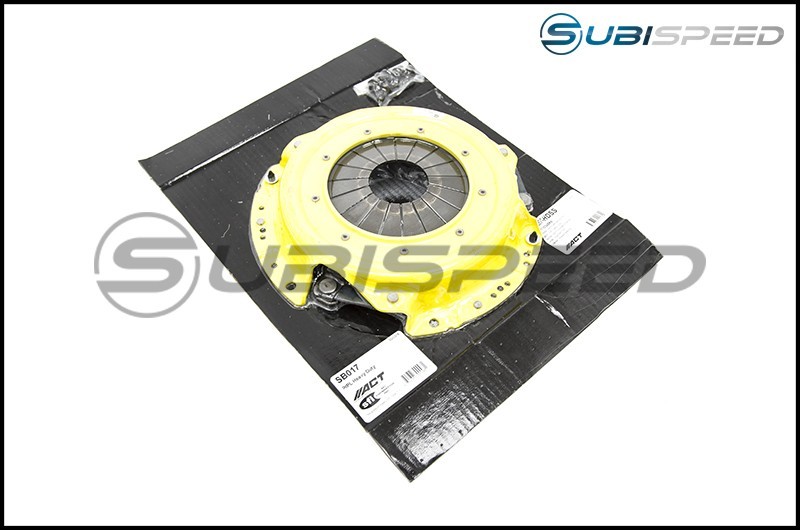

All ACT pressure plates are dynamically computer balanced for smooth operation at high RPM
Features
- Part Number: SB7-HDSS
- Description: HD/Perf Street Sprung
- Torque Capacity (ft/lbs.): 270
- Clamp Load Increase: 70%

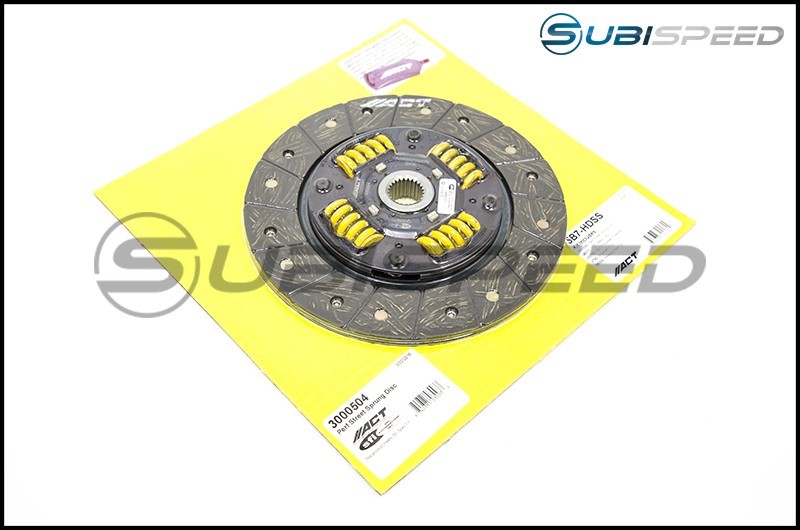

- Disc Type:Street Disc
- Pressure Plate Type:Heavy Duty
- Product Weight (lbs.):26.2lbs

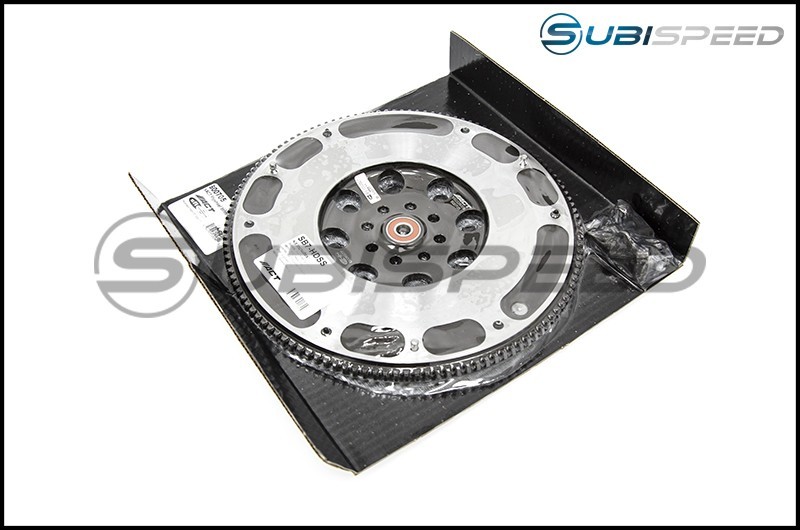

- Flywheel Included (lbs):11.8lbs

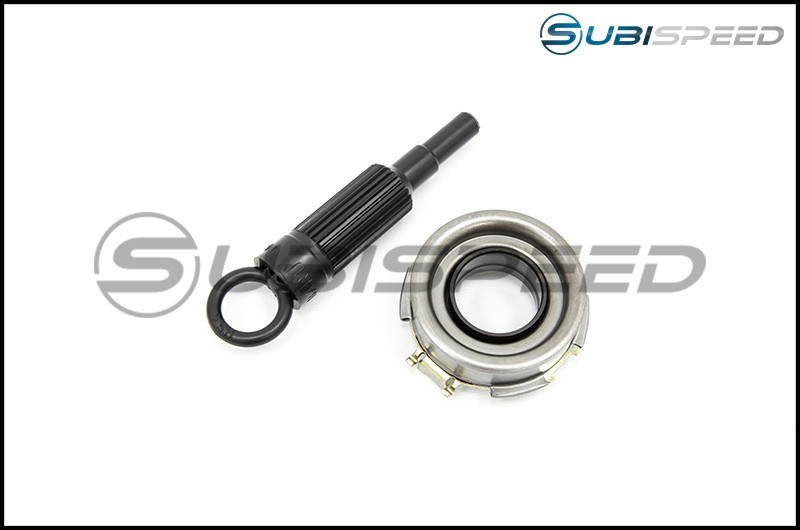

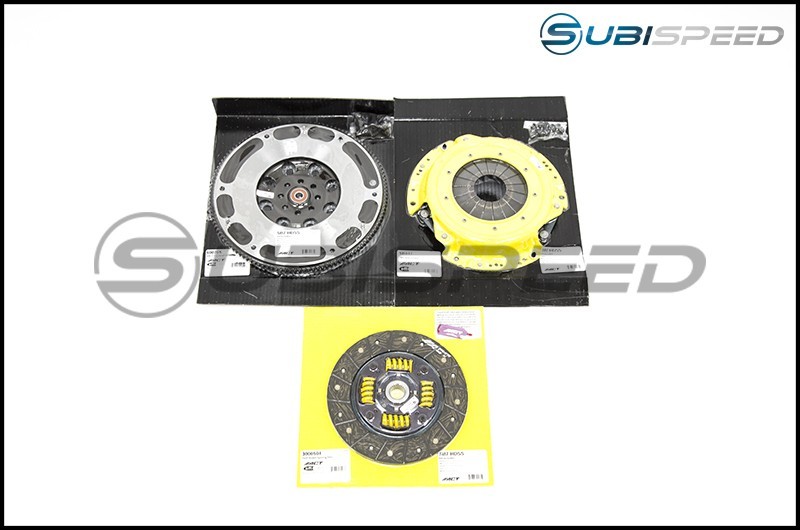

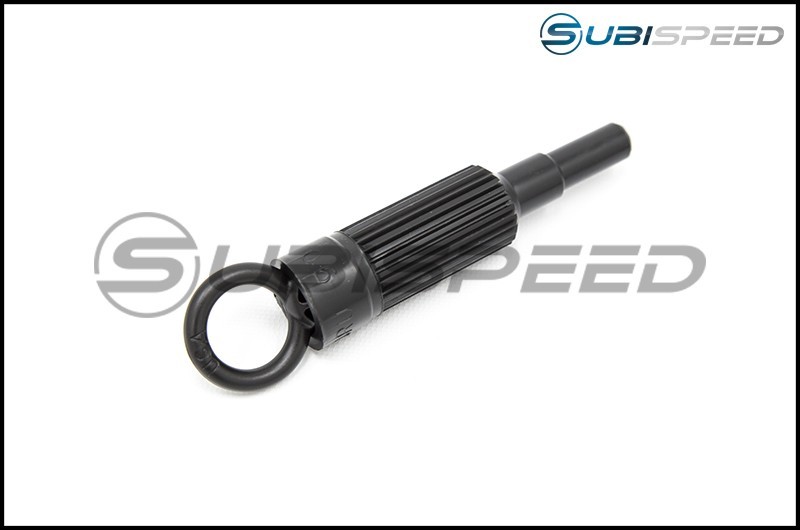

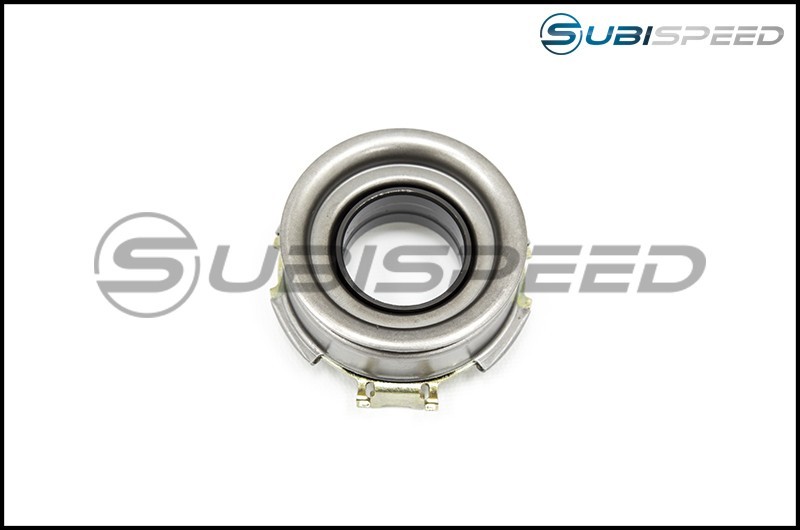

- Kit Contents: 3000504, 600705, AT90, PB1004, RB004, SB017
- Warranty (90) Days from Retail Purchase
Fits:
Scion FR-S ACT HD Street Clutch Kit (Normal FW)Scion FRS ACT HD Street Clutch Kit (Normal FW)
Subaru BRZ ACT HD Street Clutch Kit (Normal FW)
Toyota GT-86 ACT HD Street Clutch Kit (Normal FW)
Please note all ACT products are not applicable to coupon codes or any other discounts
3 customer reviews
-
Great product
By Alex January 28, 2023It was a very challenging job to do on your driveway but it is doable. I have yet to finish the break in period but so far pedal feels great and there is also a little bit of clutch rattle.
-
Overall great
By Alex January 28, 2023The product looks, feels, and performs (so far) great. I am still in the break in period but from right now I’ve noticed a heavier clutch pedal and a little of clutch chatter. This is moderately hard to install make sure you have a friend that is willing to help you out if your doing this at your crib.
-
Overall experience
By Alex January 27, 2023I am a beginner at modifying cars and I can for sure say this was a pretty hard job to do but it is possible. So far the clutch feels really nice and mid heaviness to the pedal. There is a little bit of clutch chatter but I believe that’s normal. I am still in the break in mile range but has been a sold product so far.
