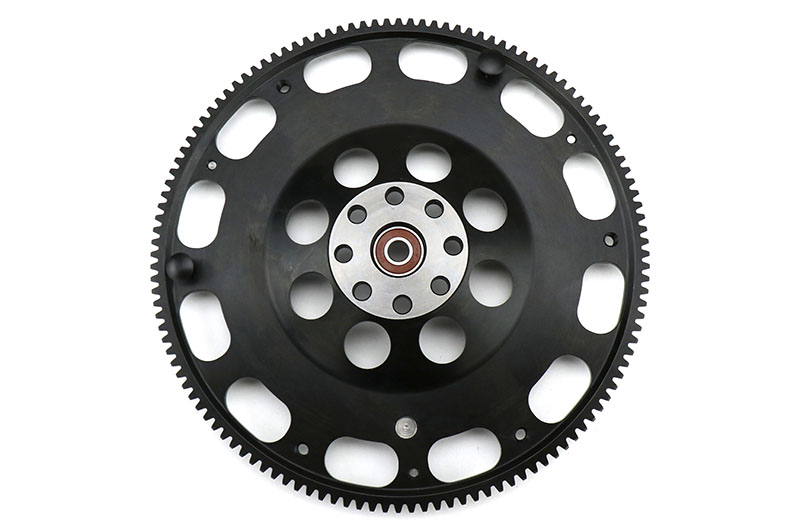

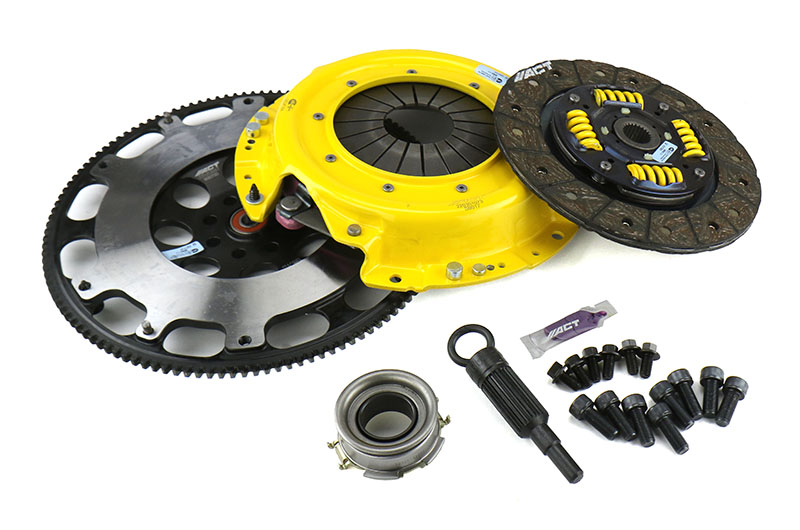

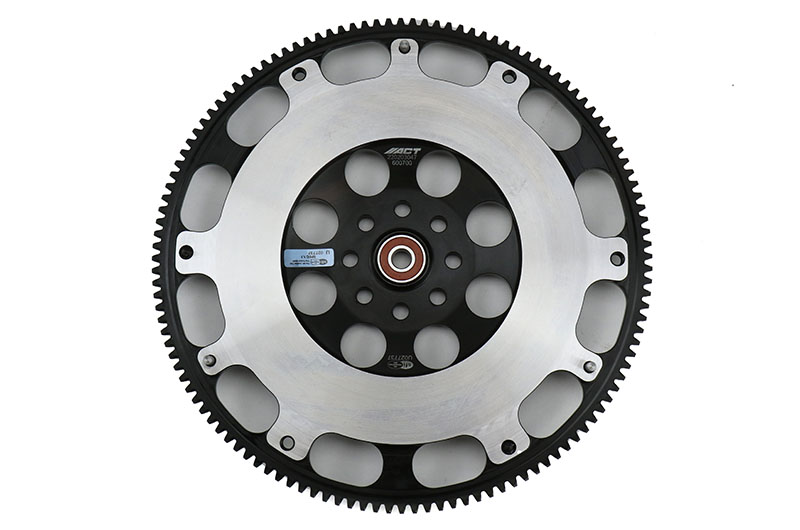

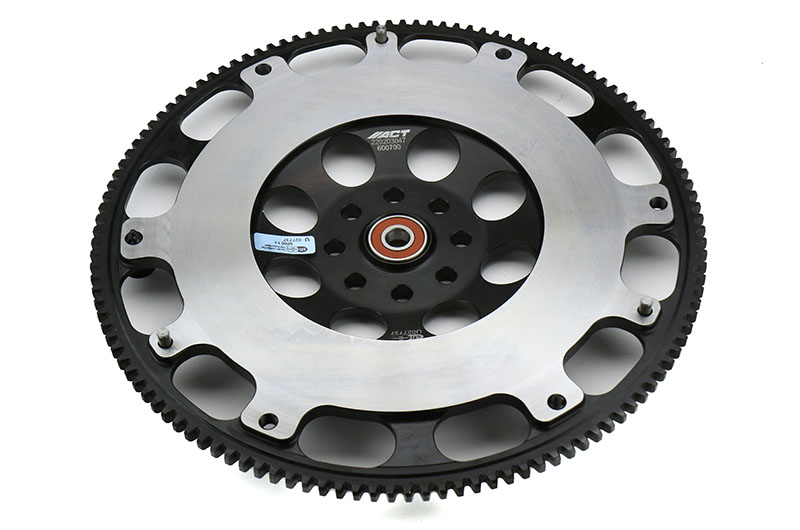

ACT HD Street Clutch Kit (Lightweight FW)

ACT HD Street Clutch Kit (Lightweight FW)

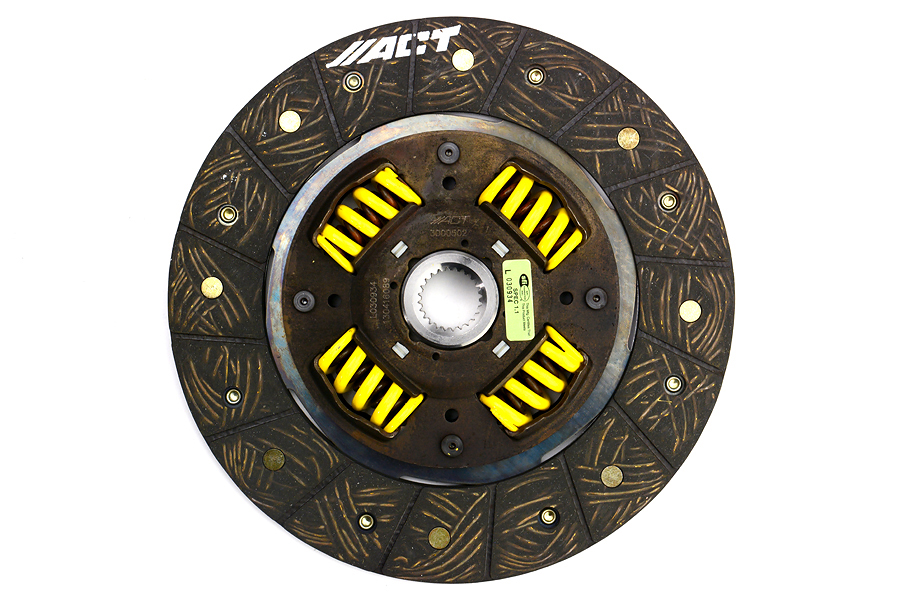

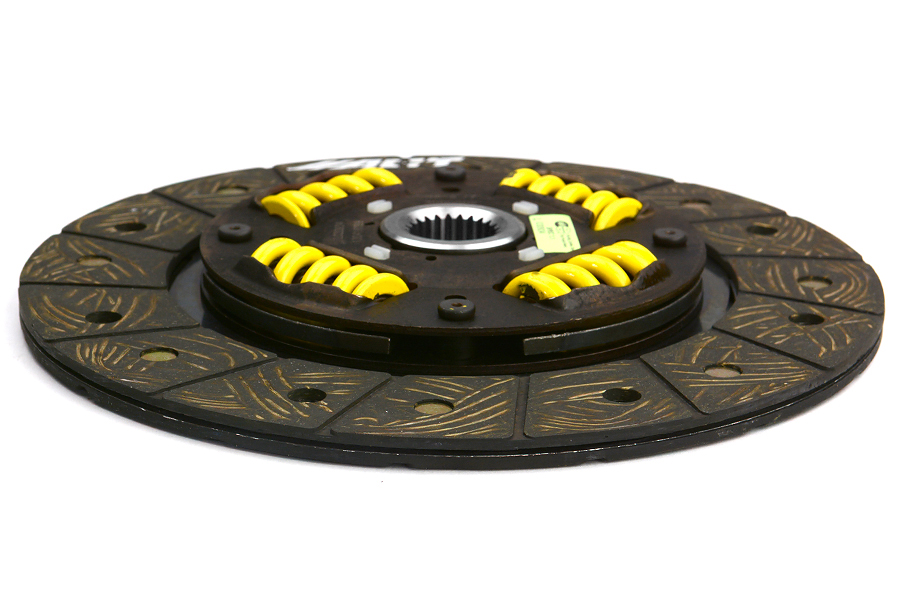

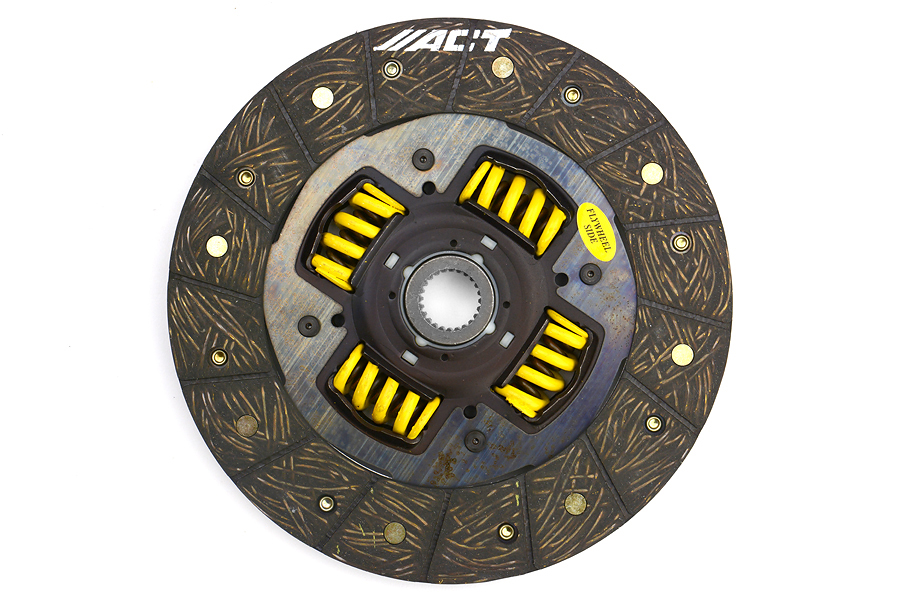

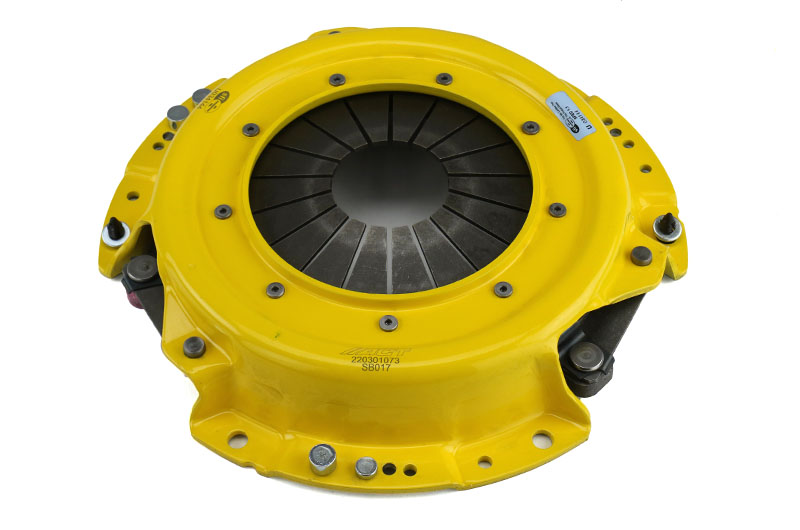

SB8-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

ACT HD Street Clutch

• Feel: Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle
• Life Longer friction life, extended by ACT's exclusive diaphragm design
• Quality Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
• Recommended Use Recommended for street and race use
• ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Specs:

• Part Number:SB8-HDSS
• Description:HD/Perf Street Sprung
• Torque Capacity (ft/lbs.):270
• Torque Capacity Over OE:70%
• Flywheel Tooth Count:124
• Disc Type:Street Disc
• Spline Count:24
• Spline Size (in.):1
• Disc Diameter (in.):8.8
• Disc Diameter (mm.):224
• Pressure Plate Type:Heavy Duty
• Product Weight (lbs.):24.9
