ACT 6 Puck Clutch Kit (Normal FW) - 2013-2016 Scion FR-S / 2013-2020 Subaru BRZ / 2017-2020 Toyota 86

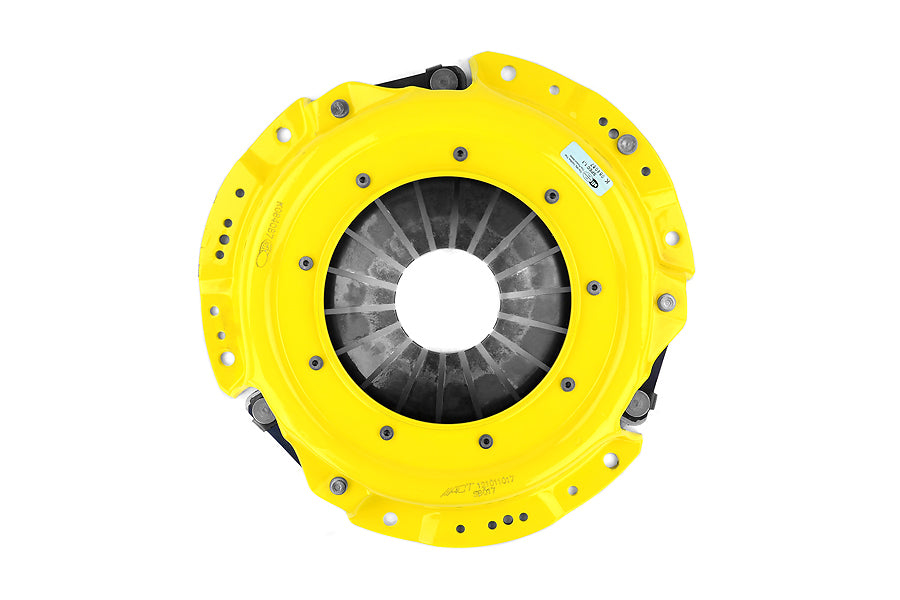

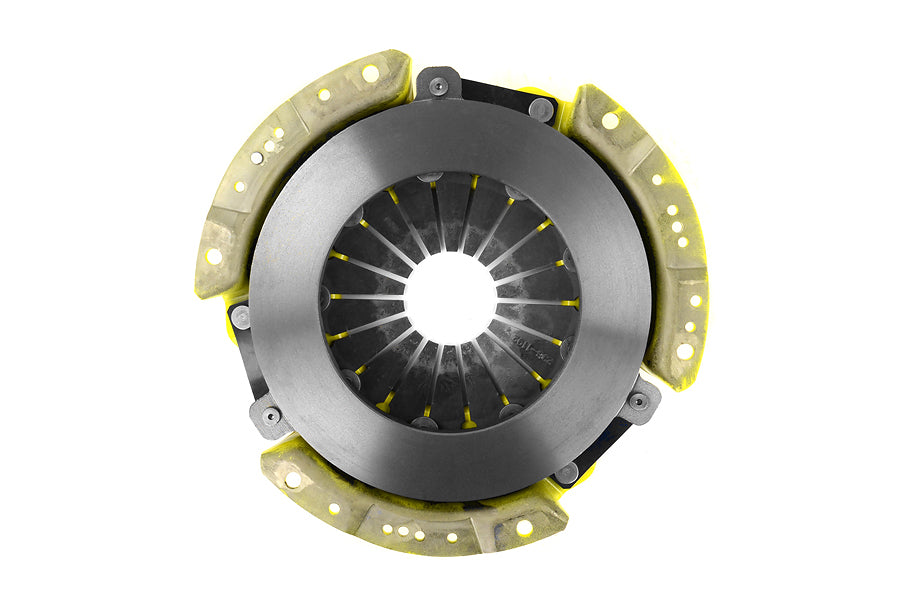

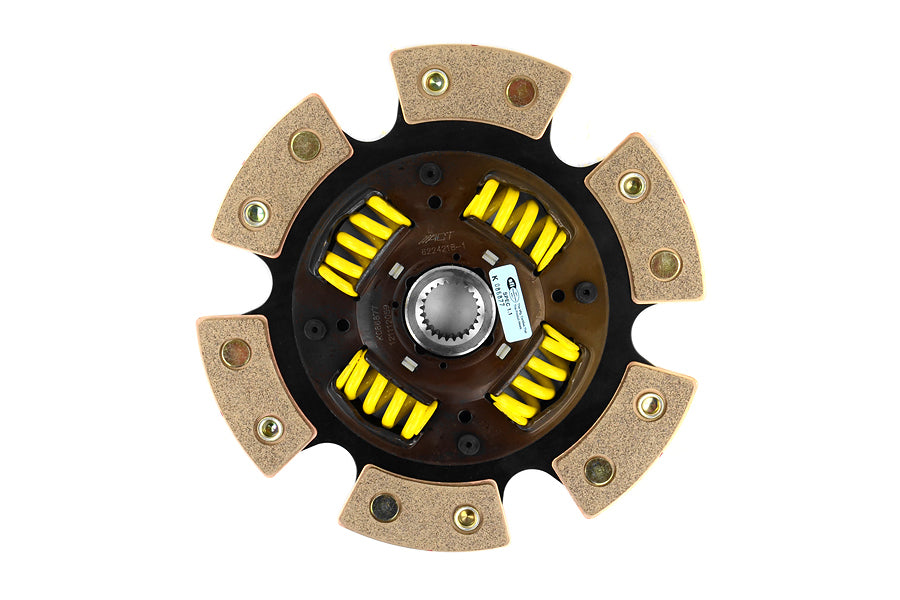

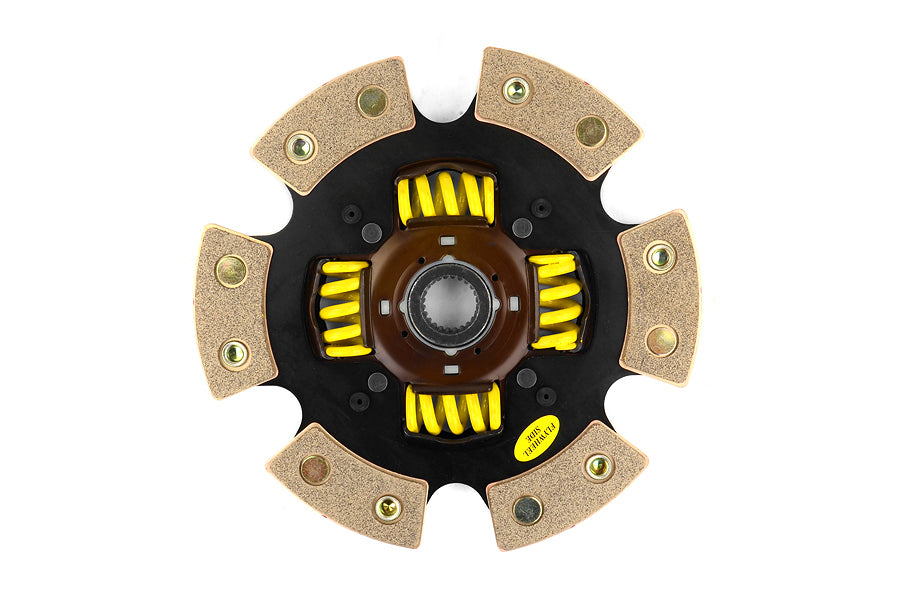

This Performance Race Kit features ACT's most popular Heavy Duty Pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT?s 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc engagement is harsher, but shifting is fast. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Feel

A low to moderate pedal feel; aggressive engagement with stock to low to moderate gear rattle.

Life

Longer clutch life achieved through ACT's exclusive diaphragm design

Quality

Premium ceramic friction materials provide low wear rates and high heat tolerance.

Recommended Use

Recommended for high horespower street or race use

ACT Difference

All ACT pressure plates are dynamically computer balanced for smooth operation at high RPM

Features

• Part Number: SB8-HDG6
• Description: HD/Race Sprung 6 Pad
• Torque Capacity (ft/lbs.): 345
• Clamp Load Increase: 70%
• Disc Type:Street Disc
• Pressure Plate Type:Heavy Duty
• Product Weight (lbs.):25.3lbs
• Lightweight Flywheel Included (lbs):11.8lbs

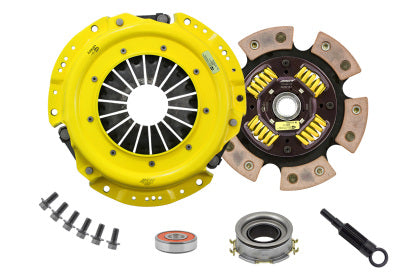

• Kit Contents: 6224218-1, 600705, AT90, PB1004, RB004, SB017
• Warranty (90) Days from Retail Purchase

Fits:

Scion FR-S ACT 6 Puck Clutch Kit (Normal FW)
Scion FRS ACT 6 Puck Clutch Kit (Normal FW)
Subaru BRZ ACT 6 Puck Clutch Kit (Normal FW)
Toyota GT-86 ACT 6 Puck Clutch Kit (Normal FW)



Please note all ACT products are not applicable to coupon codes or any other discounts
