IAG Stage 2 FA20 Subaru Short Block (10.0:1 Compression Ratio) - 2013-2020 BRZ / FRS / 86

Please Note: This item is not eligible for standard ground shipping and must be delivered via freight. To receive a custom invoice that includes all applicable freight charges, kindly contact us by email or phone.





The Stage 2 Short Block features forged pistons to handle up to 600 BHP.

IAG Stage 2 FA20 Subaru Short Block

---

Specs:

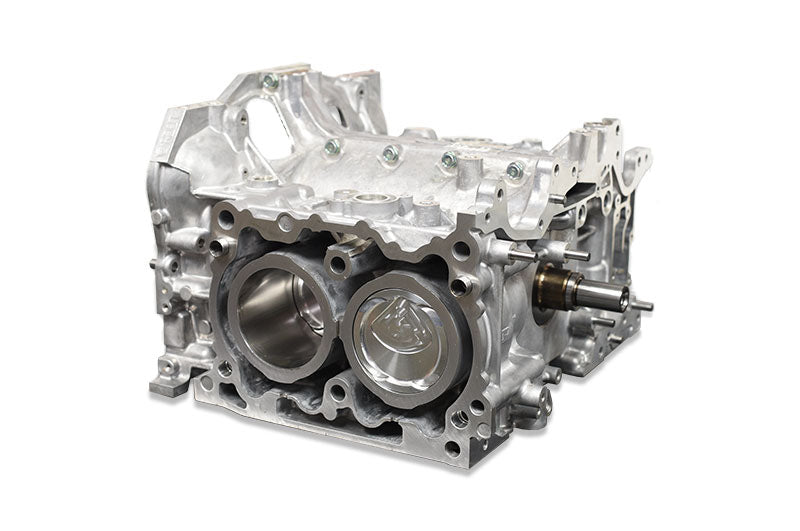

• Brand new OEM Subaru BRZ FA20 case halves
• Bored and honed to 86.1mm
• IAG-Spec 86.1mm 10.0:1 Forged Pistons (2.5 lower than stock compression, ideal for forced induction)

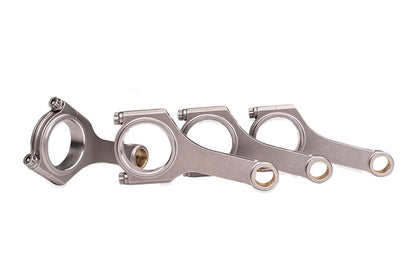

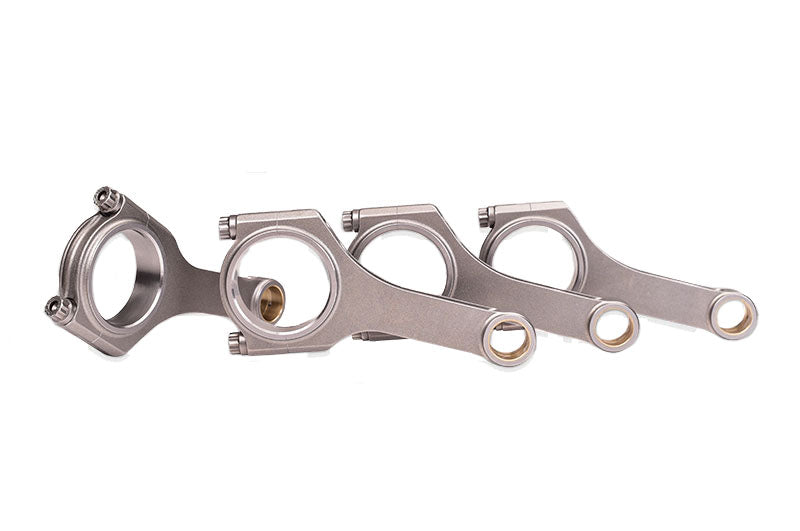

• Brian Crower H-Beam connecting rods

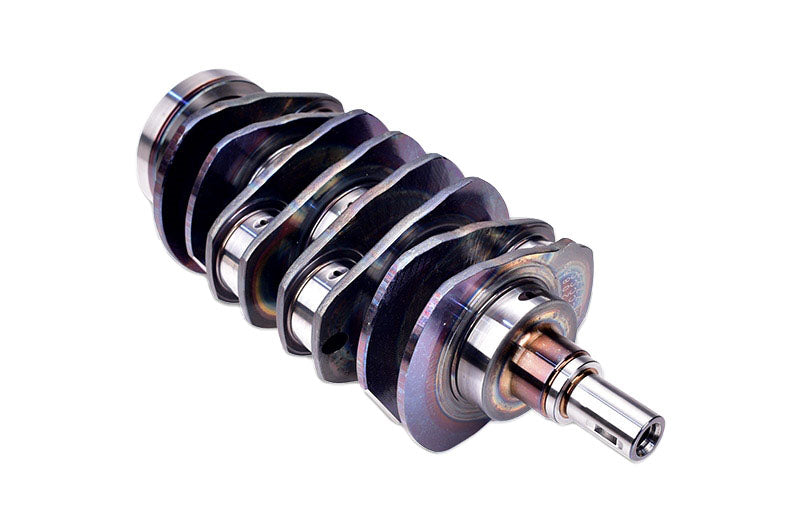

• New FA20 WRX/BRZ Subaru crankshaft
• King XPG Main Bearings
• ACL Rod Bearings
• ARP2000 Rod bolts
• Standard Subaru case bolts
• Rated to 600 BHP



NOTES:

• Compression ratio 10.5:1 compression on the standard gasket thickness (2-points lower than stock compression)

WE HAVE ENTERED STAGE 2

The IAG Performance Stage 2 Short Block is a built-short block for those of you that need stronger internals to sustain higher horsepower and higher boost. This short block starts with new FA 2.0L engine case halves that are bored and honed to 86.1mm in-house and are stuffed with IAG-Spec 86.1mm forged pistons and rings. The pistons are paired with Brian Crower H-Beam Rods that are connected to a new 2015-2020 WRX crankshaft, and the motor is carefully assembled, balanced, and blueprinted using ARP2000 rods bolts as well as ACL rod bearings and King XPG main bearings.

This is a great rebuild option for those of you who want an assembled short block built by one of the best industry-leading performance shops available and is rated to 600 BHP.
