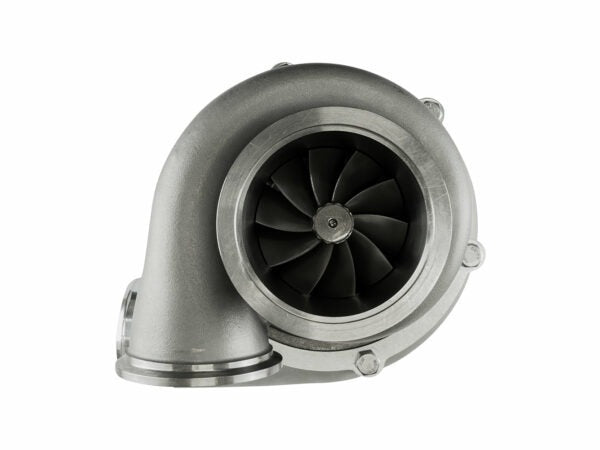

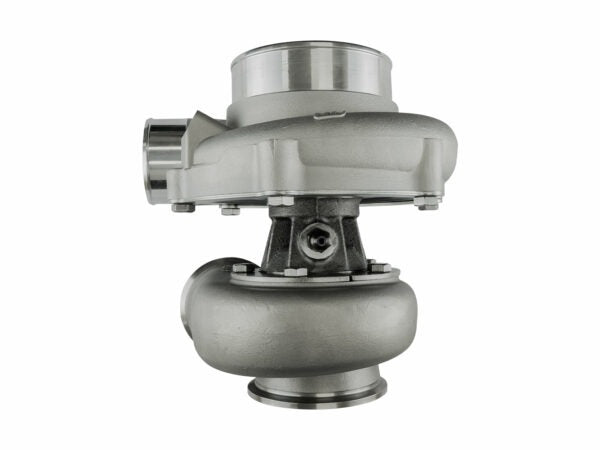

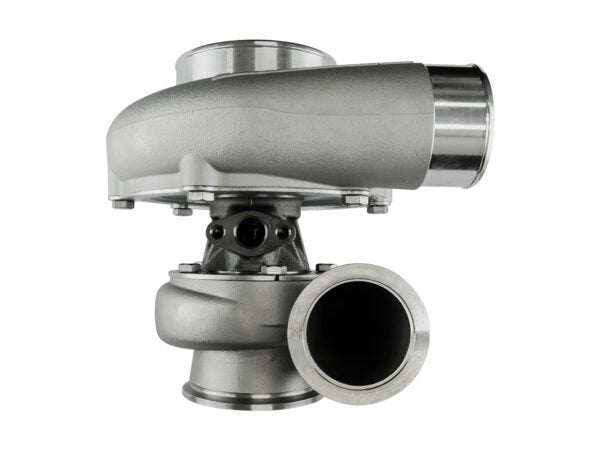

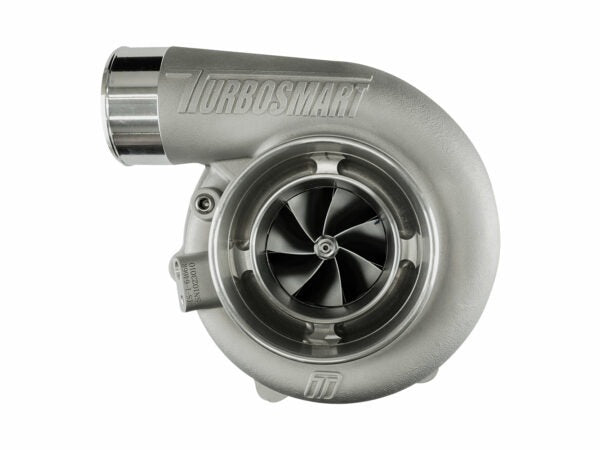

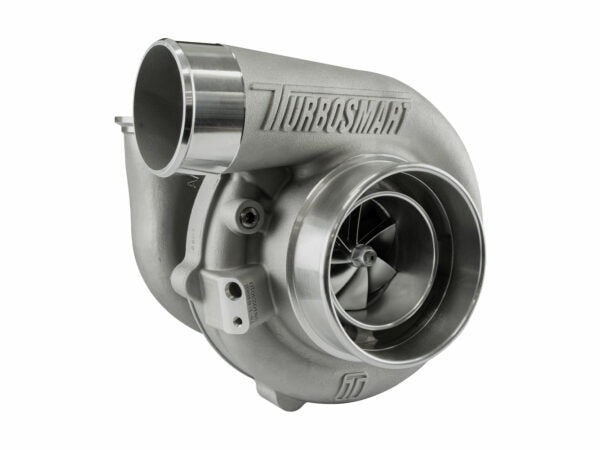

TurboSmart TS-1 Turbocharger 6262 V-Band 0.82AR Externally Wastegated (Reversed Rotation) - Universal

Turbocharger Innovation: Introducing the Turbosmart TS-1 Series

Designed to meet the exacting standards of Motorsport and performance enthusiasts, the Turbosmart TS-1 turbocharger series embodies a paradigm shift in turbocharger technology. Leveraging cutting-edge materials, advanced design principles, and innovative manufacturing techniques, this series redefines performance expectations.

Advanced Engineering for Peak Performance

The TS-1 series features oil-cooled turbochargers with lightweight stainless steel investment cast turbine housings, setting new benchmarks for durability and efficiency. Utilizing a proprietary bearing and main shaft combination, these turbochargers deliver unprecedented transient response, elevating performance to new heights while maintaining the hallmark quality, reliability, and support associated with Turbosmart.

Unmatched Performance and Responsiveness

Crafted with an ultra-low rotating mass bearing and shaft assembly, the TS-1 turbochargers offer unmatched responsiveness, ensuring optimal performance even at lower shaft speeds. Paired with aggressive compressor aerodynamics, this design guarantees exceptional performance with reduced back pressure, while a unique T14 Inconel turbine wheel maintains power output under high loads and flow conditions.

A Comprehensive Performance Solution

Taking a holistic approach to performance enhancement, the TS-1 turbocharger series aims to optimize engine performance by minimizing back pressure and maximizing turbine efficiency. With its smaller, lighter, and faster design, the TS-1 turbochargers set a new standard for turbocharger performance, offering a transformative solution unmatched by other alternatives on the market.

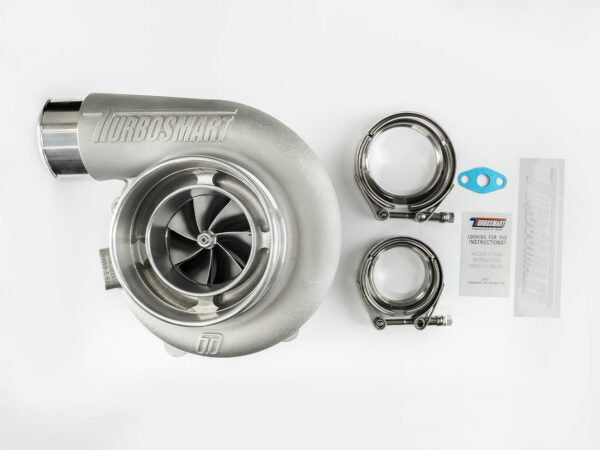

Kits Includes:

1 x Turbosmart Performance Turbocharger
2 x Weld Flanges (Turbine inlet and outlet)
2 x V-Band Clamps (Turbine inlet and outlet)
1 x Oil drain gasket



Features

• Unparalleled transient response
• Aggressive aerodynamics with 7+7 splitter wheels
• Lightweight 310s stainless steel investment cast turbine housings
• Lightweight, Aluminium compressor covers
• CFD driven designed housings for optimal AR’s and flow
• T14 Inconel turbine wheel for extreme EGT’s
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated Iron backplate on center housing



Specifications

• Compressor Inlet: 4″ / 101.6mm
• Compressor Inducer: 62mm
• Turbine Inlet: V-Band (2.25″)
• Turbine Exducer: 62mm
• Turbine AR: 0.82
• Turbine Outlet: V-Band (3.00″)
• Weight: 6.06kg / 13.3lbs
